Thermodynamic Solar Heat Pumps in Qatar

PORTUGUESE MANUFACTURING S I N C E 1 9 8 1 SOLAR BLOCK ULTRA HEATING THERMODYNAMIC SOLAR TECHNOLOGY BUILT TO THE HIGHEST STANDARDS OF QUALITY WITH OUTSTANDING PERFORMANCE. E N E R G Y EFFICIENC Y C L A S S TECHNOLOGY SYSTEM KIT WORKS DC SOFT HYDRAULIC LAST G IN E VE N R E T R E A R TION START INCLUDED UP TO E N E R G I E . P T THERMODYNAMIC SOLAR SYSTEM ErP APPLIES TO EUROPEAN DIRECTIVE FOR ENERGY READY R PR E O LA D T U E C D TS Solar Keymark WORKING PRINCIPLE The evaporation of the fluid that runs inside the closed looped circuit happens on the solar panel by capturing the heat from the sun, wind, rain and surrounding air by natural convection. The heated fluid then travels to the compressor, that will compress the fluid increasing its pressure and also it’s temperature. Then it goes to the heat exchanger where where this WARRANTY 10 heat is transferred to the water. After this, an expansion valve will make the pressure and temperature drop to YEARS sub-zero values. The fluid travels up to the thermody- SOLAR PANEL namic solar panel and the cycle repeats again. See warranty conditions PORTUGUESE MANUFACTURING SAVING MAXIMUM 85 % RETURN ON INVESTMENT UP TO KEY FEATURES • Solar performance • Simple installation “Plug and Use” • Indoor unit requires small space (<1m2) • Integrated DHW cylinder of 200 liters in stainless steel • DHW production up to 700C in heat pump mode through heat recovery • Maximum distance between interior unit and outside up to 20m SOLAR PERFORMANCE Tested and certified according to the most rigorous Euro- pean standards. The testing was carried out without solar irradiance, wind or rain. To enhance the real operating performance even more we advise to instal the thermody- namic solar pane facing South (North on the southern hemisphere), east or west. Vertically or horizontally on a wall, roof, flat roofbut always on a landscape position. SOLID AND ROBUST The thermodynamic solar panel is made of anodised alumini- um with a special Solokote finishing that ensures it’s robust and long-lasting against corrosion, in particular when exposed to saline and/or aggressive environments. This innovative technical feature allows energie to provide a 10 years warran- ty against corrosion, ensuring peace of mind to the end user. TECHNICAL DATA ULTRA6 ULTRA12 ULTRA16 ULTRA32 Heating capacity 1 Power supplied kW 4,1 - 11,2 5 - 19 8 - 26 18,5 – 48,2 Maximum power supplied kW 11,2 18,70 25,8 48,2 Heating capacity 2 Nominal power supplied kW 8,5 10,30 16,2 39,6 Nominal consumption kW 1,7 2,15 3,45 8,1 COP kW 4,97 4,80 4,7 4,91 Heating energy class A+ Dimensions HxWxD mm 1060X600X800 1060X600X800 1060X600X800 1060X600X800 Weight Kg 105 115 128 135 Maximum temperature 0C 55 Hydraulic connections Inlet/Outlet 1”M 1”M 1”M 1”1/4M Refrigerant Type R410a Precharge Kg 1,5 3,5 4,5 7 Connections Liquid 1/2” 1/2” 3/4” 7/8” Steam 3/4” 3/4” 7/8” 1”3/8 Sound pressure (distance 10m) dBA 55 61 62 65 Electrical supply Type 240V~50/60Hz 240V or 400V~50/90Hz 400V~50/60Hz Maximum power consumed kW 2,75 5,7 7,8 13,2 OUTSIDE UNIT - THERMODYNAMIC SOLAR PANELS Number 6 12 16 32 Dimensions (W x H x D) mm 2000x800x20 Weight Kg 8 Type Passive solar evaporator Material Anodized aluminum CONNECTION BETWEEN UNITS Maximum nominal distance m 20 Maximum Drop m 15 1 According to EN14511; Air temperature DB/WB 14°C/13°C; Water temperature inlet/outlet 30°C/35°C; Solar radiation 800w/m2 2 According to EN14511; Air temperature DB/WB 7°C/6°C; Water temperature inlet/outlet 30°C/35°C; Solar radiation 400w/m2 Hydraulic Kit for Central Heating: Expansion vessel + safety valve Equipment: Ultra & Ultra Plus Equipment: Thermodynamic Solar Panel X6 | X12 | X16 | X32 I J H Steam line Liquid line H. Hot water | PT. PT Valve | R. Recirculation C. Cold water | Mg. Magnesium anode CF. Refrigerator Connections L | V 600 m m 800 m m mm 0601 This flyer has been created for information purposes only and does not constitute a contractual offer for ENERGIE EST Lda. ENERGIE EST Lda. has compiled the contents of this flyer to the best of its knowledge. No express or implied guarantee is given regarding the completeness, accuracy, reliability or fitness for a particular purpose of its content and the products and services it presents. Specifications are subject to change without notice. ENERGIE EST Lda. explicitly rejects any direct or indirect damages, in its broadest sense, resulting from or related to the use and/or interpretation of this flyer. R6V0/2024 Project co-financed by: Zona Industrial de Laúndos Authorized dealer Follow us on: Lote 48, 4570-311 Laúndos ENERGIE PORTUGAL Póvoa de Varzim, Portugal EMAIL energie@energie.pt SITE www.energie.pt

PORTUGUESE MANUFACTURING S I N C E 1 9 8 1 SOLAR BOX DOMESTIC HOT WATER KEEP YOUR DOMESTIC HOT WATER CYLINDER AND TURN IT INTO AN EFFICIENT SOLAR SYSTEM E N E R G Y EFFICIENC Y C L A S S HOT WATER SALINE HOT WATER SOLAR COMPACT 24 55 °c A H O D U A RS Y EN VIRONMENT RESISTANCE UP TO PERFORMANCE UNIT E N E R G I E . P T THERMODYNAMIC ENERGIE.PT SOLAR SYSTEM ErP APPLIES TO EUROPEAN DIRECTIVE WORKING READY F R P O R E O L R A D E T U N E C E D T R S GY Solar Keymark PRINCIPLE The evaporation of the fluid that runs inside the closed looped circuit happens on the solar panel by capturing the heat from the sun, wind, rain and surrounding air by natural convection. The heated fluid then travels to the compressor, that will compress the fluid increasing its pressure and also it’s temperature. Then it goes to the heat exchanger where where this heat is transferred to the water. After this, an expansion valve WARRANTY will make the pressure and temperature drop to sub-zero 10 values. The fluid travels up to the thermodynamic solar panel and the cycle repeats again. YEARS SOLAR PANEL PORTUGUESE MANUFACTURING See warranty conditions SAVING MAXIMUM 75 % RETURN ON INVESTMENT UP TO • Heats water up to 55°C. • Retro fits to existing cylinder. • Very compact unit. • 10 year manufacturers guarantee for the solar panel. • High performance plate heat exchanger. • Circulation pump suitable for DHW. • Environmentally friendly fluid. • Significantly reduces carbon emissions. • No glass or other fragile materials. • Fine portuguese and internationally recognized brand THERMODYNAMIC SOLAR PANEL TECHNOLOGY • Anodized aluminium, with waterproof and flexible paint • Easy to transport and install, only 8 kg and 2x0,8 m • No overheating and freezing problems • It can be installed on the roof, wall, garden, etc. • No need for cleaning and humidity resistance • Estimated lifespan of 25 years • Passed the corrosion test in a salt fog test equivalent to 20 years • Solar Keymark Certification TECHNICAL DATA 1 PANEL 2 PANELS Thermal power (Med./Max.) W 1690 / 2900 2800 / 4550 Electric Power Consumed (Med./Max.) W 390 / 550 595 / 890 Voltage / Frequency V / Hz 230 / 50-60 230 / 50-60 Operating temperature OC -2 a 42 -2 a 42 Refrigerant Fluid / Qt. - / kG. R134a / 0,8 R134a / 0,8 Maximum temperature OC 55 55 Maximum working pressure (water) bar 7 7 Hydraulic connection (inlet/outlet) Pol. 1/2 | 1/2 1/2 | 1/2 Weight Kg. 23,5 23,5 Cooling connections (suction/liquid) Pol. 3/8 | 1/4 1/2 | 3/8 ErP Class | Tapping Profile A | L A | XL * Include hydraulic filter and Silentblocs PAINEL SOLAR TERMODINÂMICO Material - Anodized aluminum solarcoat Dimensions (W x H x D) mm 2000 x 800 x 20 Weight Kg. 8 Max. pressure Bar 12 Temp. max. of exposure 0C -40 | 120 DIMENSIONS mm A 465 B 425 C 325 M 800 N 2000 O 20 Equipment: Solar Box Equipment: Thermodynamic Solar Panel N O A M Suction Line Liquid line B C D D B B 2 1 1 C C TANK WITH TWO CONNECTIONS TANK WITH MORE THAN TWO CONNECTIONS 1 6 1 2 1 6 1 S1 S1 5 5 1 7 1 7 1 2 3 1 2 3 A A 4 4 D B 1 C TANK WITH BACKUP CONNECTIONS 1. Open/closed valve | 2. Non return valve | 1 S1 3. Pressure reducing valve | 4. Security group | 5. Expansion vessel | 6. Filter | 7. Drain | 5 5 A. Mains Water | B. Hot Water Outlet | C. Solar Box | D. Thermodynamic Panel | E. Mains Water | 4 4 S1. Water probe 3 3 2 2 1 1 E A This flyer has been created for information purposes only and does not constitute a contractual offer for ENERGIE EST Lda. ENERGIE EST Lda. has compiled the contents of this flyer to the best of its knowledge. No express or implied guarantee is given regarding the completeness, accuracy, reliability or fitness for a particular purpose of its content and the products and services it presents. Specifications are subject to change without notice. ENERGIE EST Lda. explicitly rejects any direct or indirect damages, in its broadest sense, resulting from or related to the use and/or interpretation of this flyer. R1V0/2024 Project co-financed by: Zona Industrial de Laúndos Authorized dealer Follow us on: Lote 48, 4570-311 Laúndos ENERGIE PORTUGAL Póvoa de Varzim, Portugal EMAIL energie@energie.pt SITE www.energie.pt

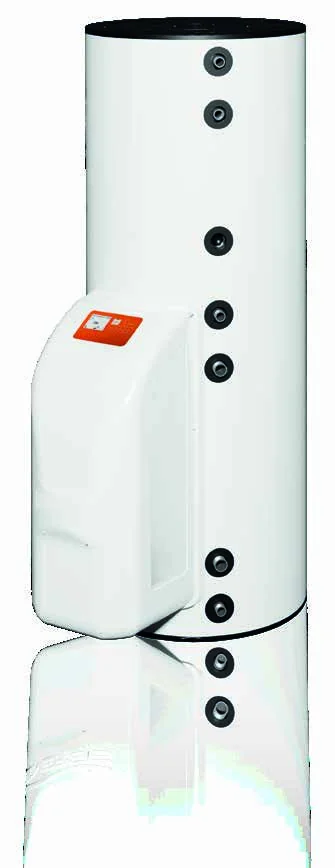

PORTUGUESE MANUFACTURING S I N C E 1 9 8 1 ECO DOMESTIC HOT WATER CERTIFIED PRODUCT REFRIGERANT R513A E N E R G Y EFFICIENC Y C L A S S O FRIEN D C L E Y R513 A LATEST GENERATION OF SOLAR TECHNOLOGY. WORKS WITH SUN, WIND, RAIN OR EVEN AT NIGHT. HOT WATER SALINE SAVING SOLAR WORKS WITH 24 85 % A H O D U A RS Y ENVIRONMENT RESISTANCE UP TO UP TO PERFORMANCE SYSTEM E N E R G I E . P T EFFICIENCY & QUALITY IN DOMESTIC HOT WATER PRODUCTION PORTUGUESE MANUFACTURING SAVIN G MAXIMUM 85 % RETURN ON INVESTMENT UP TO • Stainless steel cylinder • High level of efficiency and ecology • Quiet operation • Easy installation • Smart photovoltaic function • Anti-legionella function • Optional coil • Controller with software in 6 languages • MCS Certification THERMODYNAMIC SOLAR PANEL • Anodized aluminium, with solocoat flexible finishing • Easy to transport and install, only 8 kg and 2x0,8 m. • No glass, rubber or fragile materials. • No overheating and freezing problems • It can be installed on the roof, wall, garden, etc. • Panel efficiency does not decrease with age or dirt • No need for cleaning and humidity resistance • Estimated lifespan of 25 years • Passed the corrosion test in a salt fog test equivalent to 20 years • Solar Keymark Certification 2 4 H O U R S A D A Y / 7 D A Y S A W E E K / 3 6 5 D A Y S A Y E A R SOLAR PERFORMANCE Tested and certified according to the most rigorous European standards it has achived an extraordinary coefficient of performance of 3,9 according to the EN16147. The testing was carried out without solar irradiance, wind or rain. To enhance the real operating performance even more we advise to instal the thermody- namic solar pane facing South (North on the southern hemisphere), east or west. Vertically or horizontally on a wall, roof, flat roofbut always on a landscape position. SOLID AND ROBUST The thermodynamic solar panel is made of anodised aluminium with a special Solokote finish- ing that ensures it’s robust and long-lasting against corrosion, in particular when exposed to saline and/or aggressive environments. This innovative technical feature allows energie to provide a 10 years warranty against corrosion, ensuring peace of mind to the end user. SIMPLE AND ERGONOMIC The high efficiency of the hot water cylinder is achieved by using a high-density polyurethane foam that ensures a low heat loss rate, being able to keep the water heated for several days in a row even if the units is turned off. SOPHISTICATED The equipment's indoor unit has a stainless steel or enamelled cylinder, as well as an external condens- er. High density injected polyurethane insulation with cathodic protection. The thermodynamic block is equipped with a state-of-the-art compres- sor, with one of the lowest electrical consumptions on the market. THERMODYNAMIC SOLAR SYSTEM ErP APPLIES TO EUROPEAN DIRECTIVE WORKING READY F R P O R E O L R A D E T U N E C E D T R S GY PRINCIPLE The evaporation of the fluid that runs inside the closed looped circuit happens on the solar panel by capturing the heat from the sun, wind, rain and surrounding air by natural convection. The heated fluid then travels to the compressor, that will compress the fluid increasing its pressure and also it’s temperature. Then it goes to the heat exchanger where where this heat is transferred to the water. WARRANTY WARRANTY 10 5 After this, an expansion valve will make the pressure and temperature drop to sub-zero values. The fluid YEARS YEARS travels up to the thermodynamic solar panel and the SOLAR PANEL CYLINDER cycle repeats again. See warranty conditions EQUIPMENT • No ducts and no fans • No energy-consuming defrost cycles • Super efficient low consumption compressor • No need to install support equipment SOLAR PANEL • Captures heat regardless of MPERATU E R T E weather factors 55 •Primary circuit does not need to °c dissipate excess heat on hotter day • Easy architectural integration, UP TO versatile without visual impact ELECTRONIC CONTROLLER DOMESTIC HOT WATER PRODUCTION ECO Operating Mode The equipment only works as a Thermodynamic Solar System. AUTO Operating Mode The equipment works as a Thermodynamic Solar System and/or electrical support should be required. BOOST Operating Mode The equipment works with a Thermodynamic Solar System and electrical support simultaneously. PHOTOVOLTAIC INTELLIGENT 4 FUNCTION 1 Take Full advantage of your PV System: • Sets new standards of smart energy management • Maximize your PV Solar Panels production and 5 reduce your DHW costs • Maximize the solar irradiation available by having the thermodynamic solar system working more when there is more sun available 2 • Get the balance between PV production and consumption with our intelligent controller With PV Smart Grid Ready, the ENERGIE Solar 1. Thermodynamic Solar Panel System absorbs the extra power generated by 2. Storage Water Heater 3 3. Thermodynamic Block PV Panels, Wind Energy or Small Hydro storing, 4. Photovoltaic Panels what would be lost energy, into the water, 5. Inverter enabling you to save even more. 3% DOMESTIC 4% Stand-by ENERGY SAVING UP TO Power Cooking CONSUMPTION 7% Light With conventional 85% heating equipment 7% Refrigerators and Freezers 38% Heating 16% • Considering ECO250 Other • 7 hours of operation per day Usess • Consumption of 0.39 kW/h • Required energy/month: 0.39 kW x 7h x 30 days = 81.9 kWh/month 25% Water Heating Equipment: Thermodynamic Solar Panel Equipment: Storage Water Heater M N K J L Suction Line Liquid line Top view H G E I D C B A Front Connections: Rear Connections: Rear Connections: 200I / 200IX | 250I /250IX 300I / 300IX 500I / 500IX H G E I D C B A H G F I E D B A ECO - 1 Panel Net weight Kg 60 68 71 63 71 74 Volume L 200 250 300 195 245 295 Material - Stainless steel Cathodic protection - Mg Anode (1”1/4) * Water - inlet and outlet Pol. 3/4” 3/4” 3/4” 1” 1” 1” Hydraulic connections PT Valve - 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” Recirculation - 3/4” 3/4” 3/4” 3/4” 3/4” 3/4” Coil | entrance and exit bar - - - 1” 1” 1” Insulation - High density polyurethane 50mm Maximum pressure 0C 7 7 7 7 7 7 Maximum operating temperature kWh/24h 80 80 80 80 80 80 Heat loss (EN12897) - 0.99 1.01 1.17 0,99 1.01 1.17 Heat Exchanger Capacity 1 N/A ** N/A ** N/A ** a)20 ; b)12 a)20 ; b)12 a)20 ; b)12 * If applicable | ** Not applicable Material - Anodized aluminum solarcoat Dimensions (W x H x D) mm 2000 x 800 x 20 Weight Kg. 8 Maximum Working Pressure bar 12 Maximum Exposure Temperature 0C -40 | 120 Dimensions (W x H x D) mm 320 / 710 /280 Weight Kg. 17.5 Abs orbed power (avg/max) W 390 | 650 The.rmal power (avg/Max) W 1400 | 2380 Electric support power W 1500 Refrigerant fluid / Qt. 2 -/g R513a / 1300 Piping material - Copper (DHP ISO1337) Liquid line | asp. Pol. 1/4” | 3/8” Power supply V/Hz 230 / Single-phase / 50 or 60 3 300I 200IX 250IX Load profile - L XL XL L XL XL Coefficient of performance (COP) Air 14OC - 3,69 3,84 3,92 3,69 3,84 3,92 Energy efficiency class Air 14OC - A+ A+ A+ A+ A+ A+ Energy efficiency Air 14OC - 154 158 162 154 158 162 Annual energy consumption Air 14OC KWh/year 664 1060 1037 664 1060 1037 Amount of useful water at 40°C L 261.3 349 362.5 256.3 344 357.5 Set point OC 54 54 54 54 54 54 Interior sound level dB 47 47 47 47 47 47 1 a) Primary Circuit (Te = 90°C; Ts = 80°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) | b) Primary Circuit (Te = 70°C; Ts = 60°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) 2 The fluid quantity must be verified by the installer. In certain cases, it is necessary to adjust the amount of fluid to ensure proper system operation. 3 The 60 Hz frequency is available only on request. 4 According to EN16147, Delegated Regulation (EU) Nº812/2013 and Delegated Regulation (EU) Nº814/2013. A Cold water 131 131 102 131 131 102 B Coil outlet - - - 231 231 231 C Instrumentation - - - 435 435 431 D Coil inlet - - - 690 690 631 E Recirculation - 840 850 - 840 850 F Anode - - - - - - G PT valve 905 1205 1060 905 1205 1060 H Hot water 1030 1325 1185 1030 1325 1185 I Height 1243 1543 1403 1243 1543 1403 J Diameter 580 580 650 580 580 650 K Depth 879 879 953 879 879 953 L 800 M 2000 N 20 ECO - 2 Panels Net weight Kg. 60 68 71 71 74 73 93 Volume L 200 250 300 245 295 455 443 Material - Stainless steel Cathodic protection - Mg Anode (1”1/4) * W ater - inlet and outlet - 3/4” 3/4” 3/4” 3/4” 3/4” 1” 1” Hydraulic connections PT Valve Pol. 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” Recirculation - - 1/2” 1/2” 1/2” 1/2” 3/4” 3/4” Coil | entrance and exit - - - - 1” 1” - 1” Insulation - High density polyurethane 50mm Maximum pressure bar 7 7 7 7 7 7 7 Maximum operating temperature OC 80 80 80 80 80 80 80 Heat loss (EN12897) kWh/24h 0.99 0.99 1.01 1.17 0.99 1.01 1.17 Heat Exchanger Capacity 1 kWh N/A ** N/A ** N/A ** a)20 ; b)12 a)20 ; b)12 N/A ** a)20 ; b)12 * If applicable | ** Not applicable Material - Anodized aluminum solarcoat Dimensions (W x H x D) mm 2000 x 800 x 20 Weight Kg 8 Maximum Working Pressure bar 12 Maximum Exposure Temperature 0C -40 | 120 Dimensions (W x H x D) mm 320 / 710 / 280 Weight Kg 17.5 Absorbed power (avg/max) W 620 | 950 Thermal power (avg/max). W 2300 | 3760 Electric emergency backup W 1500 2200 Refrigerant fluid / Qt. 2 -/g R513a / 1400 Piping material - Copper (DHP ISO1337) Liquid line | suction line Pol. 3/8” | 1/2” Power supply V/Hz 230 / Single-phase / 50 or 60 3 Load profile - L XL XL XL XL XXL XXL Coefficient of performance (COP) Air 14OC - 3,6 3,7 3,8 3,7 3,8 3,7 3,7 Energy efficiency class Air 14OC - A+ A+ A+ A+ A+ A+ A+ Energy efficiency Air 14OC - 152 154 158 154 158 152 152 Annual energy consumption Air 14OC -KWh/Year 673 1091 1063 1091 1063 1416 1416 Amount of useful water at 40°C L 231 349 363 344 358 599 599 Set point OC 54 54 54 54 54 54 54 Interior sound level dB 47 47 47 47 47 47 47 1 a) Primary Circuit (Te = 90°C; Ts = 80°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) | b) Primary Circuit (Te = 70°C; Ts = 60°C); Domestic Hot Water Circuit (Te = 10°C; Ts = 60°C) 2 The fluid quantity must be verified by the installer. In certain cases, it is necessary to adjust the amount of fluid to ensure proper system operation. 3 The 60 Hz frequency is available only on request. 4 According to EN16147, Delegated Regulation (EU) Nº812/2013 and Delegated Regulation (EU) Nº814/2013. A Cold water 131 131 102 131 102 102 102 B Coil outlet - - - 231 231 - 237 C Instrumentation - - - 435 431 - - D Coil inlet - - - 690 631 - 657 E Recirculation - 840 850 840 850 784 784 F Anode - - - - - 1095 1095 G PT valve 905 1205 1060 1205 1060 1772 1772 H Hot water 1030 1325 1185 1325 1185 1937 1937 I Height 1243 1543 1403 1543 1403 2023 2023 J Diameter 580 580 650 580 650 650 650 K Depth 879 879 953 879 953 953 953 L 800 M 2000 N 20 This flyer has been created for information purposes only and does not constitute a contractual offer for ENERGIE EST Lda. ENERGIE EST Lda. has compiled the contents of this flyer to the best of its knowledge. No express or implied guarantee is given regarding the completeness, accuracy, reliability or fitness for a particular purpose of its content and the products and services it presents. Specifications are subject to change without notice. ENERGIE EST Lda. explicitly rejects any direct or indirect damages, in its broadest sense, resulting from or related to the use and/or interpre- tation of this flyer. R3V1/2026 Zona Industrial de Laúndos Authorized dealer Follow us on: Lote 48, 4570-311 Laúndos ENERGIE PORTUGAL Póvoa de Varzim, Portugal EMAIL energie@energie.pt SITE www.energie.pt

PORTUGUESE MANUFACTURING S I N C E 1 9 8 1 SOLAR BLOCK DOMESTIC HOT WATER, CENTRAL HEATING & SWIMMING-POOL HEATING LATEST GENERATION IN, THERMODYNAMIC SOLAR SYSTEM. COMFORT, ECONOMY & ECOLOGY,DAY & NIGHT, HAIL, RAIN, WIND OR SHINE. HOT WATER SALINE LONGEVITY SOLAR HOT WATER 24 +20 55 °c A H O D U A RS Y ENVIRONMENT RESISTANCE YEARS PERFORMANCE UP TO E N E R G I E . P T THERMODYNAMIC SOLAR SYSTEM ErP APPLIES TO EUROPEAN DIRECTIVE FOR ENERGY READY R PR E O LA D T U E C D TS WORKING Solar Keymark PRINCIPLE The evaporation of the fluid that runs inside the closed looped circuit happens on the solar panel by capturing the heat from the sun, wind, rain and surrounding air by natural convection. The heated fluid then travels to the compressor, that will compress the fluid increasing its pressure and also it’s temperature. Then it goes to the heat exchanger where where this WARRANTY WARRANTY 10 5 heat is transferred to the water. After this, an expansion valve will make the pressure YEARS YEARS and temperature drop to sub-zero values. The fluid SOLAR PANEL CYLINDER travels up to the thermodynamic solar panel and the See warranty cycle repeats again. conditions SOLAR PANEL • Captures heat regardless of EQUIPMENT weather factors • No ducts and no fans •Primary circuit does not need to • No energy-consuming defrost cycles dissipate excess heat on hotter • Super efficient low consumption compressor day • No need to install support equipment • Easy architectural integration, versatile without visual impact Electronic expansion valve Domestic hot water for industrial use Heat dissipation through radiators, underfloor heating, convectors, among others Central heating Hot water up to 55°C is always guaranteed 24h, 365 days a year Swimming pool heating Heated swimming pool all year ECO XL Thermodynamic solar solution for HOTELS, HOSPITALS, SCHOOLS, domestic hot water industrial use SPORTS HALLS, INDUSTRY WITH DOMESTIC ECONOMY Reduce hot water bill in your condominium, hotel, school, gym or industry with ENERGIE Thermodynamic Solar System. The solution Eco XL is the latest generation in water heating. Uses a high performance innovative technology that allows the user to benefit from a substantial reduction in water heating costs and getting a quick payback of the investment. You can get water up to 550C on rainy days or during the night thanks to its innovative operating principle. The maintenance of the solar system is practically non-existent. Only required to check the tank sacrificial anode. The solar system XL Eco does not lose performance over the years, always assuring optimal performance. The capabilities of deposits ranging from 1000 to 6000 liters , it is also possible to link together multiple systems to higher needs . The high performance of the systems also allows a reduction of the area of solar panels compared to traditional systems. • The solar panels are light, discreet and have versatility in terms of where to put them • The energy consumption of the equipment is reduced due to a very efficient compressor • Latest generation of solar energy • Solar hot water up to 550C available • Almost non-existent maintenance • Versions with 1 or 2 cylinders • Stainless steel Aisi316 cylinders with water / water heat exchanger (optional) to connect a boiler • Solutions from 6 up to 40 thermodynamic solar panels • Capacities from 1000 up to 6000 liters MODEL Eco 1000 Eco 1500 Eco 2000 Eco 3000 Eco 4000 Eco 6000 Solar Panels 6 12 12 / 16 16 / 28 28 40 Nominal Capacity l 1000 1500 2000 3000 4000 6000 Maximum Thermal Power W 11800 16580 16580 / 24210 24210 / 38220 38220 54600 Power Consumption W 1230 2010 2010 / 3210 3210 / 5650 5650 8450 Thermal storage 1 1 1 or 2 1 or 2 2 2 Users* 22 34 45 68 90 135 * Considering an average consumption of 50 liters / persons / day CENTRAL HEATING COMFORT, CONVENIENCE WITH MAXIMUM ECONOMY Thermodynamic solar solution for central heating The Thermodynamic Solar System represents high levels of economy and comfort when heating your house. The cutting edge technology used allows you to obtain both high performance and high efficiency. Thanks to the ability of a Thermodynamic System to harness a variety of renewable energy sources such as sun, wind and rain; a Solar Thermodynamic Systems represents the best solution to reducing energy consumption. With no greenhouse gas emissions, Thermodynamic Solar Systems provide a major environmental benefit. A single system can efficiently and effecti- vely provide both the space heating and domestic hot water requirements. You can also use your system to provide central heating during the colder seasons and then switch to the heating of the pool during the warmer months, maximizing your investment. • Low Co2 emissions • Super efficient environment heating at low temperature • Non-existent programmed maintenance • Possibility of joining all house heating equipment into just one solution • Highly efficient scroll compressor • Free of defrost cycles • Small dimension indoor unit • Central heating without chimneys and burnt gases, totally environmentally friendly MODEL Solar Block 6 Solar Block12 Solar Block 16 Solar Block 28 Solar Block 40 Solar Panels 6 12 116 28 40 Maximum Thermal Power W 7500 16580 24210 38220 54600 Power Consumption W 1230 2010 3210 5650 8450 Water Flow m³/h 0,7 1,0 1,5 3,0 5,0 Electrical Supply 1~/ 230V / 50 Hz or 3~/ 400V / 50 Hz | 3~/ 400V / 50 Hz Area to be heated* m2 90 150 220 300 450 * Does not relieve the sizing of the solar system according to the building, installation and geographic location SWIMMING POOL HEATING HEATED SWIMMING-POOL EVERY DAY OF THE YEAR Thermodynamic solar solution for swimming pool The perfect solution for those who want to enjoy their swimming pool all year round with both economic and environmental benefits. With high levels of reliability and efficiency, ENERGIE Thermodynamic Solar Systems are not constrained by the limitations of traditional systems. The system is designed to be maintenance free, thereby reducing running costs. The Thermodynamic Solar System uses a sealed circuit that does not require the periodic addition of fluid. Additionally, the system uses a titanium heat exchanger with very high resistance to the swimming pool chlorine. Needs also less solar panels than traditional systems, being this way more economical and efficient. • Swimming-pool heated all year round with the lowest cost in the market • Non-existent programmed maintenance • Possibility of joining all house heating equipment into just one solution • Highly efficient scroll compressor • Free of defrost cycles • Small dimension indoor unit • High performance electronic expansion valve MODEL Solar Block 6 Solar Block 12 Solar Block 16 Solar Block 28 Solar Block 40 Solar Panels 6 12 16 28 40 Maximum Thermal Power W 7500 16580 24210 38220 54600 Power Consumption W 1230 2010 3210 5650 8450 Electrical Supply 1~/ 230V / 50 Hz or 3~/ 400V / 50 Hz | 3~/ 400V / 50 Hz Gross Weight kg 48 96 128 210 320 Volume to be heated* m2 16 36 53 100 120 * Does not relieve the sizing of the solar system according to the swimming pool, installation and geographic location This flyer has been created for information purposes only and does not constitute a contractual offer for ENERGIE EST Lda. ENERGIE EST Lda. has compiled the contents of this flyer to the best of its knowledge. No express or implied guarantee is given regarding the completeness, accuracy, reliability or fitness for a particular purpose of its content and the products and services it presents. Specifications are subject to change without notice. ENERGIE EST Lda. explicitly rejects any direct or indirect damages, in its broadest sense, resulting from or related to the use and/or interpretation of this flyer. R3V0/2024 Project co-financed by: Zona Industrial de Laúndos Authorized dealer Follow us on: Lote 48, 4570-311 Laúndos ENERGIE PORTUGAL Póvoa de Varzim, Portugal EMAIL energie@energie.pt SITE www.energie.pt
